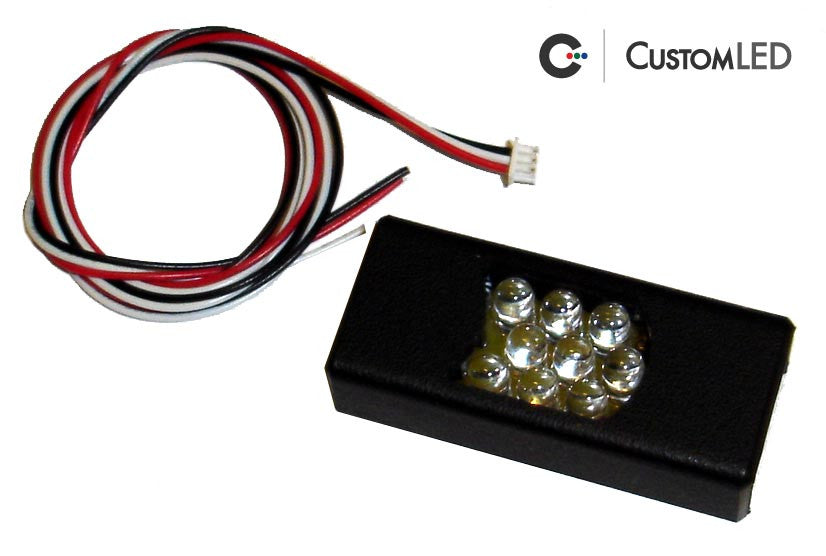

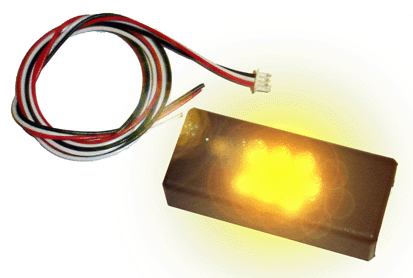

Wicked Strobes Programmable LED Strobe

Wicked Strobe Performance Features:

• Super compact size for easy mounting/storage on motorcycle (2" x 0.86" x 0.5" L x W x D)
• Ultra bright light output – maximum possible illumination power
• 7 intense user selectable strobe patterns, and one steady on super-bright mode
• Modules require no other electronics or controllers!  Each one is fully autonomous
• Automatic mode cycles through all 7 strobe patterns continuously
• Regulated design insures consistent and maximum performance over wide input voltage range (12 - 35 VDC)
• Rugged plastic enclosure for simple double sided tape mounting
• Weather resistant design
• 18" long plug-in cable assembly provided
• Only 3 wire hookup!  Power, ground and communication/program wire
• Modules maintain synchronization with each other simply by connecting program wires together

• Programming is achieved simply by intermittently grounding the program wires of each wicked strobe module.
• <1 sec ground on program wire (white) will cycle each module to the next strobe pattern in manual mode.
• >1 sec ground on program wire (white) will put each module into automatic mode.

Wicked Strobe Installation Instructions:

Installation of the Custom LED Wicked Strobes is detailed in the instructions below:
